Commercial VRF Air Conditioning Installation — Welham Green, Hertfordshire
Apolo Heating & Cooling designed, supplied and installed a complete Mitsubishi Electric VRF heat-recovery air conditioning system for a 500m² office, showroom and canteen area within a 28,500 sq. ft. commercial unit in Welham Green.
The system provides independently controlled heating and cooling across the different areas from a single outdoor unit, with centralised control for the building-management team.
The System:

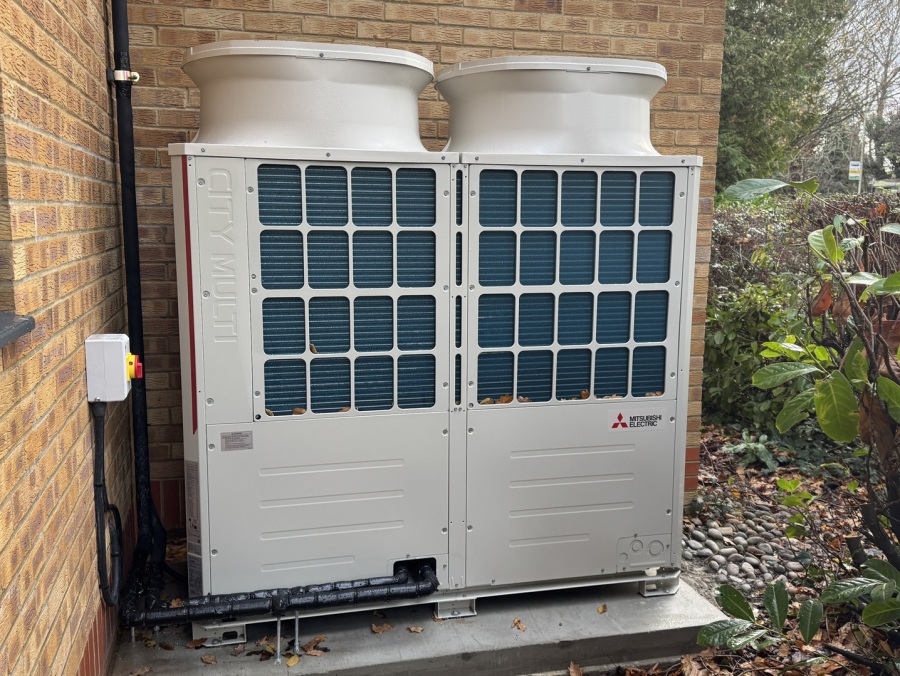

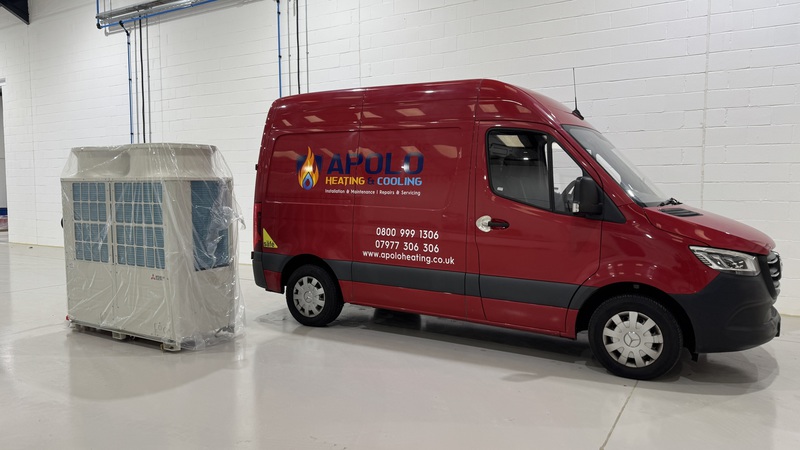

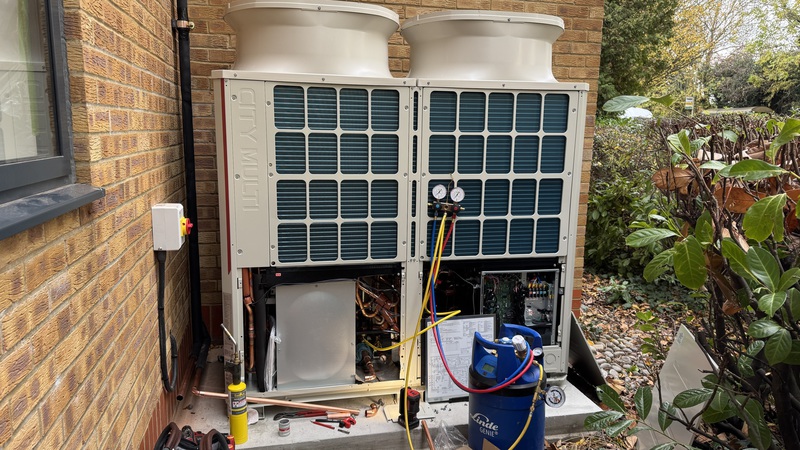

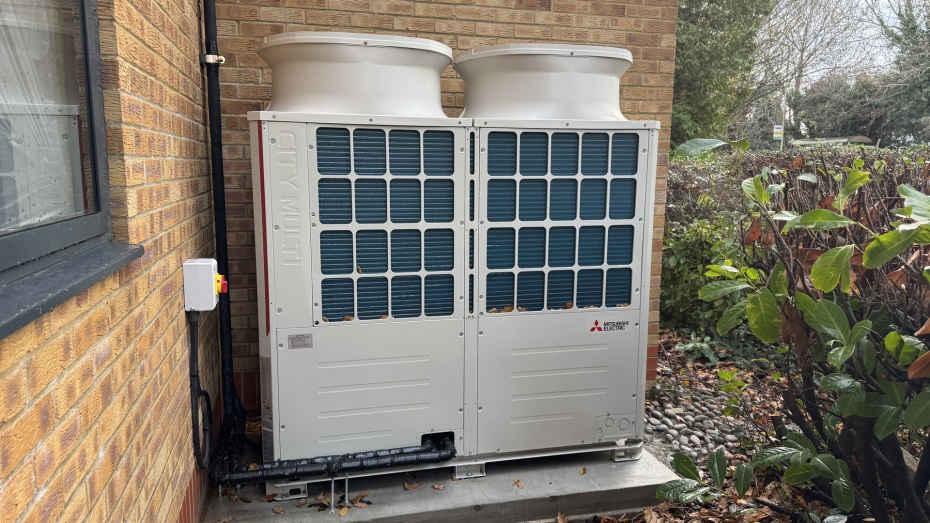

- 1 × Mitsubishi Electric PURY-P500YNW-A2 VRF outdoor unit
- 1 × Mitsubishi Electric BC branch controller
- 12 × indoor units in capacities selected for each area
- 9 × wired local room controllers
- 1 × Mitsubishi Electric AE-C400E centralised controller
- Complete refrigerant pipework and insulation
- Condensate drainage, control cabling and electrical connections
The Work:
Our team managed the complete installation from system design through to final commissioning. Careful planning was required to provide suitable climate control for spaces with different heating and cooling demands, including offices, a showroom and a higher-occupancy canteen.
Twelve indoor units of varying capacities were selected and positioned according to the size and use of each area. The indoor units were connected to a central BC controller, allowing the heat-recovery system to provide heating and cooling in different areas as required.
Nine wired controllers provide convenient local temperature adjustment, while the AE-C400E centralised controller gives building management oversight and control of the complete installation from a single interface.
The work included installing the outdoor and indoor units, BC controller, refrigerant pipework, fittings, insulation, condensate drainage, electrical connections, control cabling, supports and fixings. The complete system was pressure-tested, evacuated, configured and commissioned upon completion.
The Result:
A fully commissioned and centrally managed VRF system providing reliable, energy-efficient heating and cooling throughout the office, showroom and canteen areas.
Each part of the building can be controlled according to its individual usage and comfort requirements, while the central controller provides straightforward building-wide management. The completed installation delivers flexible year-round climate control across a large commercial site.
Commercial Boiler Replacement — Large Residential Property, Chesham

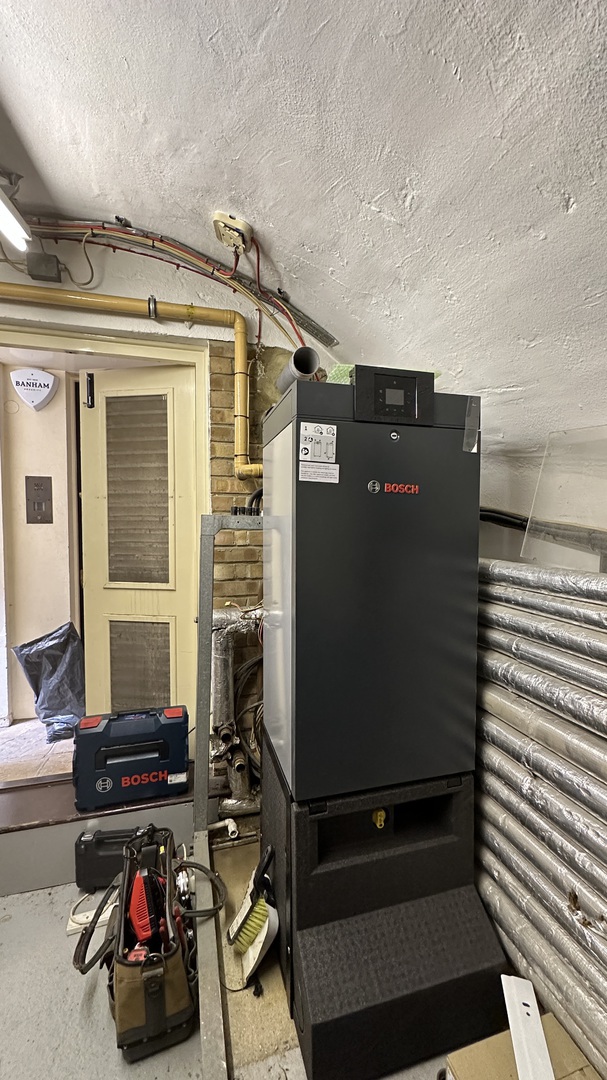

Apolo Heating & Cooling supplied and installed a Worcester Bosch Condens 7000WP 100kW commercial condensing boiler at a large residential property in Chesham, Buckinghamshire.
The new boiler and dedicated pump unit replaced an ageing heating appliance. A BoilerMag XL commercial magnetic filter was also installed to protect the new equipment and improve the long-term reliability of the heating system.
The System:
- 1 × Worcester Bosch Condens 7000WP 100kW commercial condensing boiler
- 1 × dedicated boiler pump unit
- 1 × BoilerMag XL commercial magnetic filter
- Associated pipework, valves and fittings
- Complete testing and commissioning
The Work:

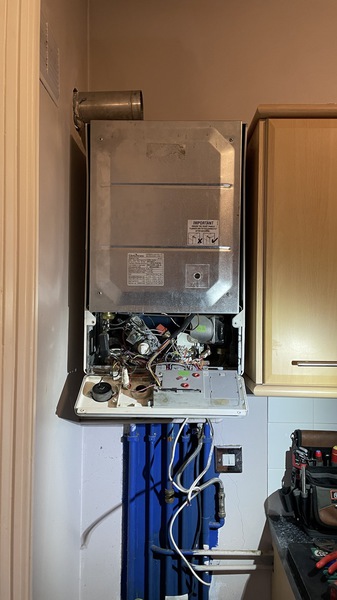

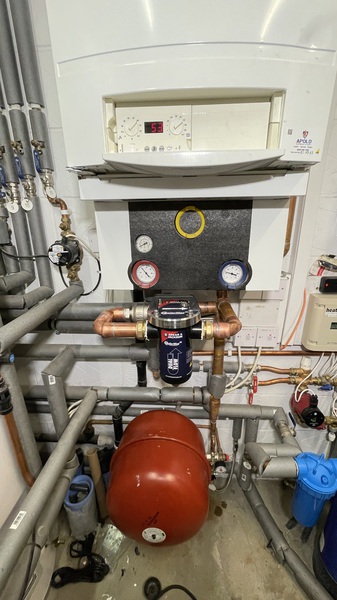

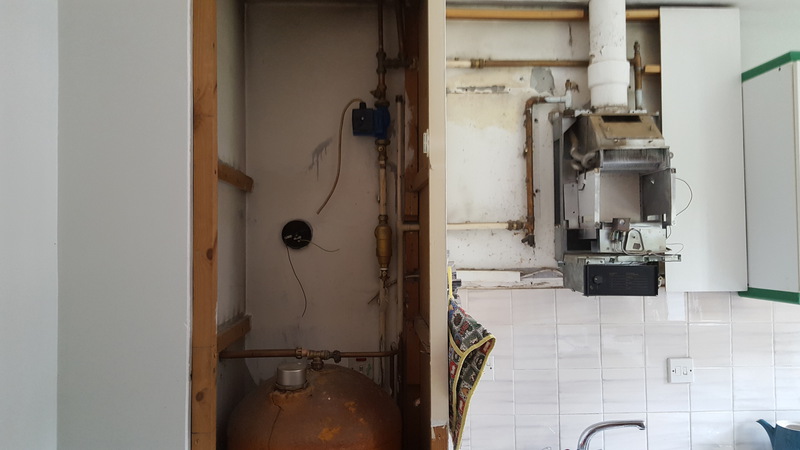

Our team removed the ageing boiler and prepared the existing heating system for the new commercial installation. The 100kW Worcester Bosch Condens 7000WP boiler was installed with its dedicated pump unit, with the surrounding pipework adapted to meet the heating requirements of the property.

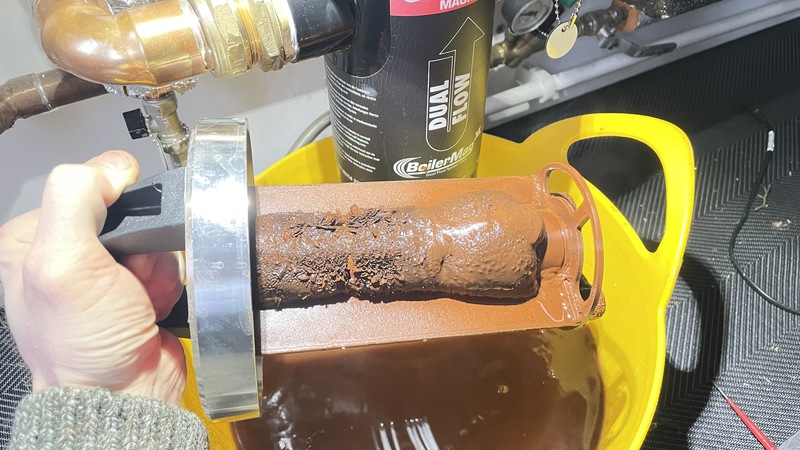

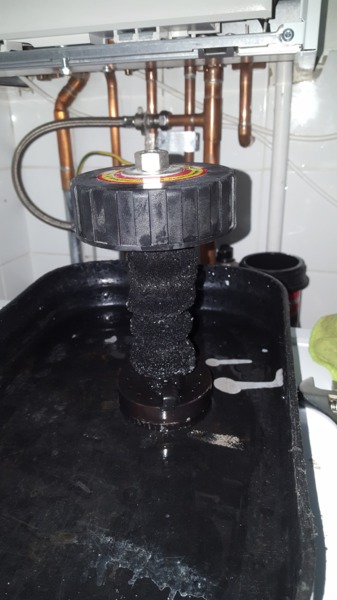

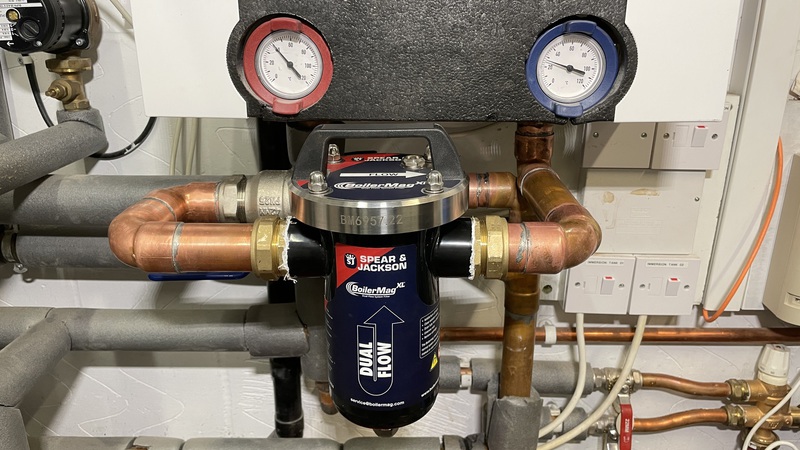

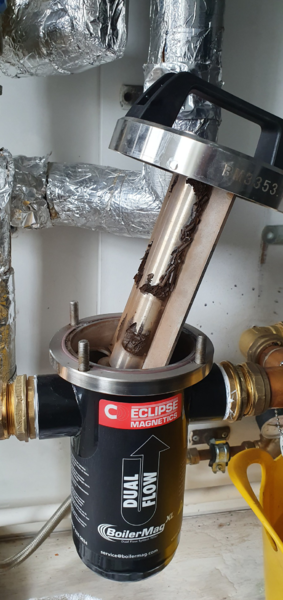

A BoilerMag XL commercial magnetic filter was incorporated into the system to capture circulating magnetite and other heating debris. This helps protect the boiler and pump, maintain system performance and reduce the risk of future damage caused by contamination.
Following installation, the boiler, pump unit and system controls were tested and fully commissioned to confirm safe, reliable and efficient operation.
The Result:
A fully commissioned, high-output commercial heating system capable of meeting the substantial heating demands of this large residential property.
The BoilerMag XL provides additional system protection, helping safeguard the new boiler and associated components. This project demonstrates our ability to deliver commercial-grade heating solutions for properties with requirements beyond those of a standard domestic boiler installation.
Commercial VRF Air Conditioning Installation — Welbeck Street, London
Apolo Heating & Cooling designed, supplied and installed two complete Mitsubishi Electric VRF heat-recovery air conditioning systems for a five-storey office building on Welbeck Street in central London.
The systems provide simultaneous heating and cooling across the building, with independent temperature control for different floors and office areas.
The System:

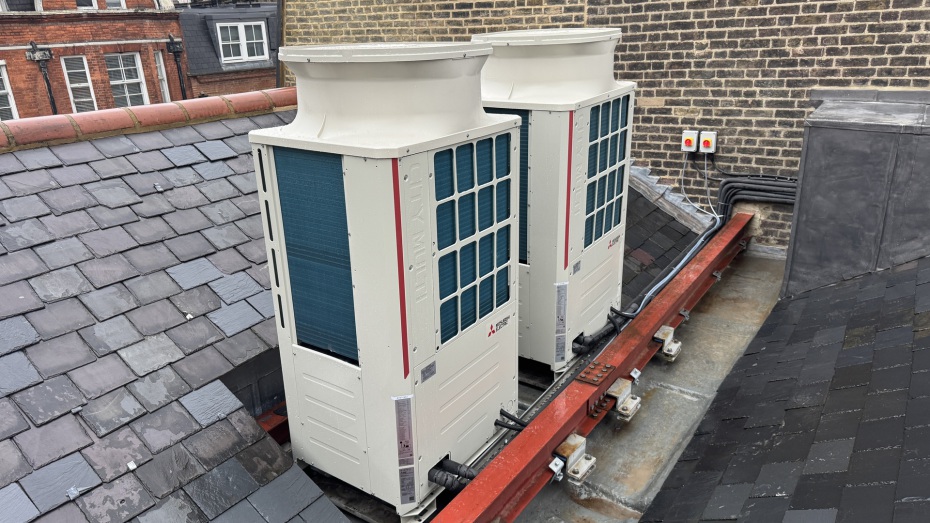

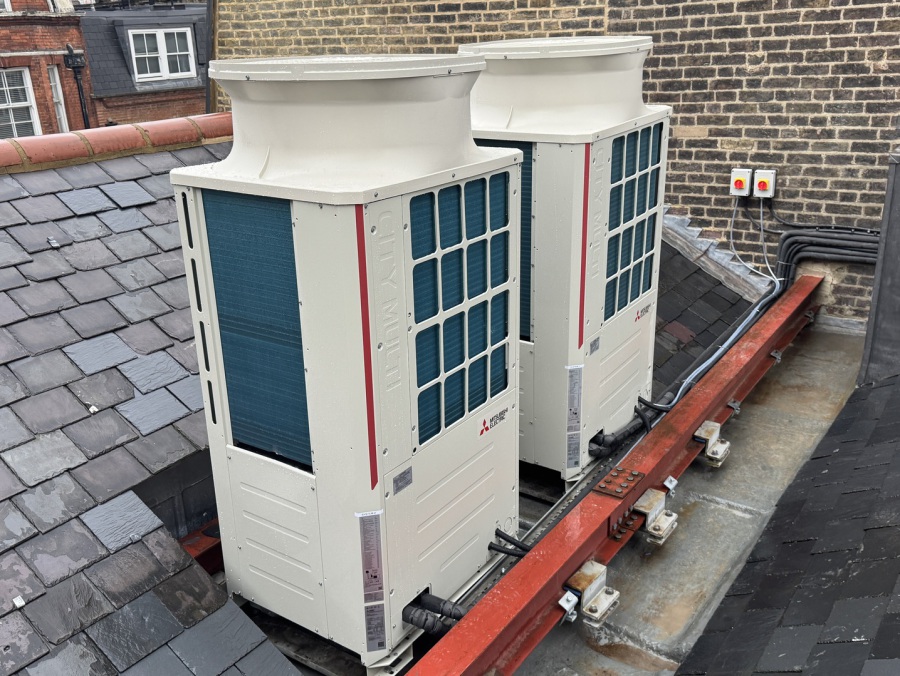

- 2 × Mitsubishi Electric PURY-P200YNW-A2 20kW R410A heat-recovery VRF outdoor units
- 2 × Mitsubishi Electric CMB-M1012V-JA1 branch controllers
- 20 × Mitsubishi Electric PFFY-P concealed floor-standing indoor units
- 18 × Mitsubishi Electric PAR-41MAA wired room controllers
- 1 × Mitsubishi Electric AE-C400E centralised controller
- Complete refrigerant pipework and insulation
- Condensate drainage, control cabling and electrical connections
The Work:

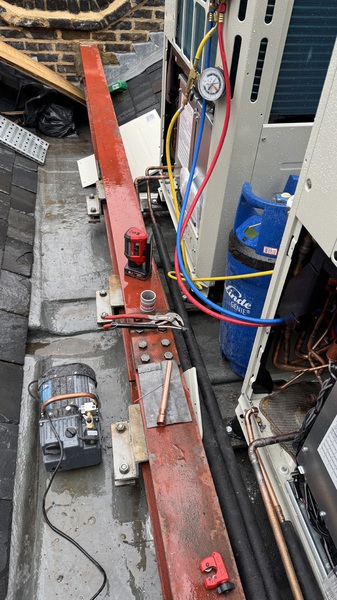

Our team installed two independent heat-recovery VRF systems serving all five floors of the office building. The systems were divided across the property to provide greater flexibility and resilience while allowing individual areas to operate independently.
Twenty concealed indoor units were installed throughout the office spaces, providing effective climate control without compromising the appearance of the interior fit-out. Each system was connected through its own branch controller, enabling simultaneous heating and cooling in different areas of the building.
Local wired controllers allow occupants to adjust individual zones, while the AE-C400E centralised controller gives building management complete oversight of the installation from a single interface.
The work included the installation of the outdoor and indoor units, branch controllers, refrigerant pipework, insulation, condensate drainage, electrical connections and control cabling. Both systems were fully pressure-tested, evacuated, configured and commissioned upon completion.
The Result:
A fully commissioned, building-wide heating and cooling system serving five floors of office accommodation. The installation provides independent temperature control, simultaneous heating and cooling, and centralised management for reliable and efficient year-round comfort.
The completed project demonstrates Apolo Heating & Cooling’s capability to deliver large-scale, technically demanding commercial VRF installations in central London.
Restaurant, New Malden - Commercial Air Conditioning Installation
Apolo Heating & Cooling supplied and installed a complete 14kW three-phase air conditioning system for a restaurant in New Malden. The installation combined a ceiling cassette indoor unit with a matching outdoor condensing unit to provide effective heating and cooling within the restaurant.
The System:
- 1 × 14kW three-phase outdoor condensing unit
- 1 × ceiling cassette indoor unit
- Refrigerant pipework and insulation
- Condensate drainage
- Electrical and control connections
The Work:

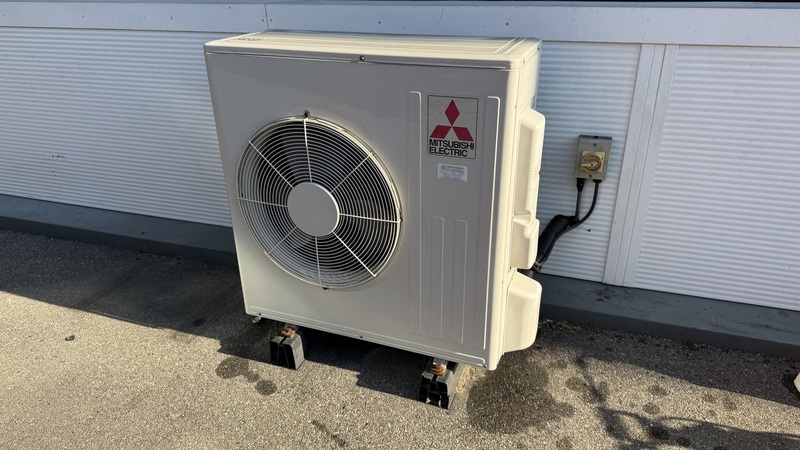

Our team completed the full installation of the indoor ceiling cassette and outdoor condensing unit. The work included mounting both units, installing the interconnecting refrigerant pipework, insulation, condensate drainage, electrical supplies and controls.

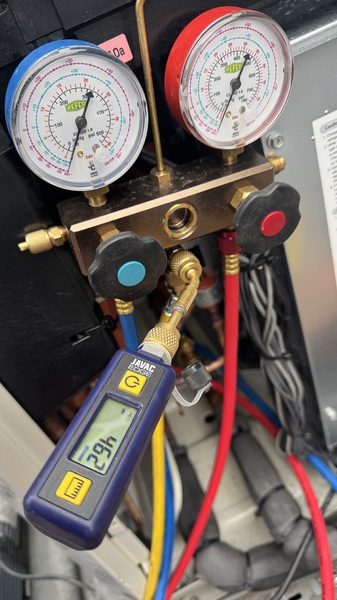

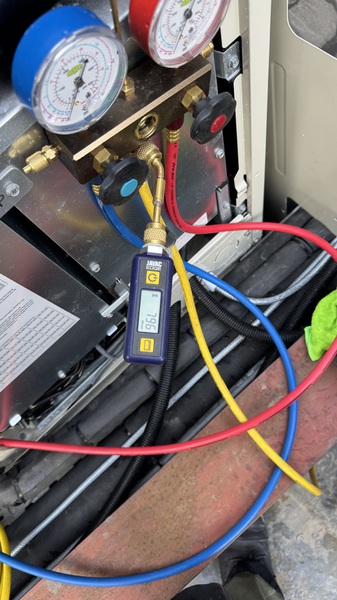

After installation, the system was pressure-tested, evacuated and fully commissioned. Refrigerant pressures, electrical operation and system performance were checked to confirm safe and reliable operation.
The Result:
A fully commissioned 14kW air conditioning system providing powerful and efficient heating and cooling for the restaurant. The ceiling cassette distributes conditioned air evenly throughout the space while remaining discreetly integrated into the ceiling.
Complete Heating and Plumbing Installation - Send, Surrey

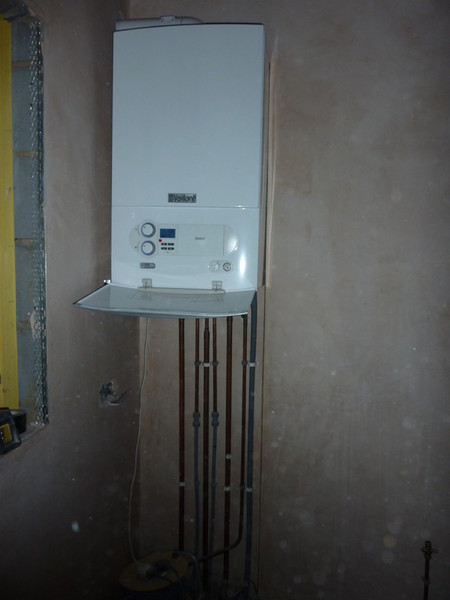

Apolo Heating & Cooling completed a full heating, hot-water and plumbing installation for a large residential property on Boughton Hall Avenue in Send, Surrey. The project included a 35kW Vaillant ecoFIT boiler, a 300-litre Vaillant hot-water cylinder, approximately 160m² of ground-floor underfloor heating, cast-iron radiators on the first floor and plumbing services for four bathrooms.
The System:

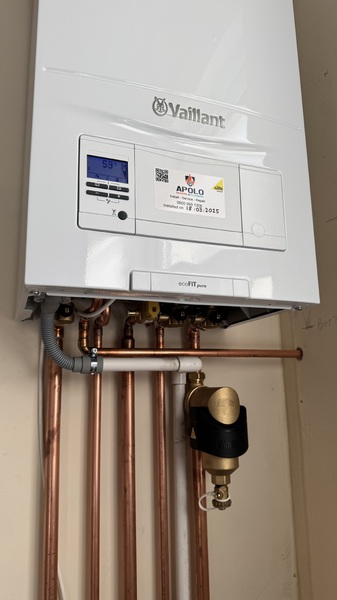

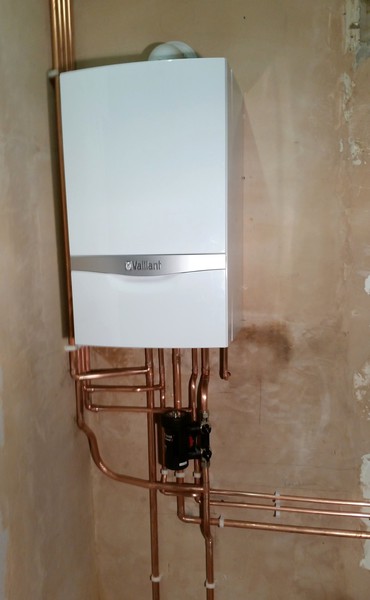

- 1 × Vaillant ecoFIT 35kW boiler
- 1 × Vaillant 300-litre hot-water cylinder
- Approximately 160m² of ground-floor underfloor heating

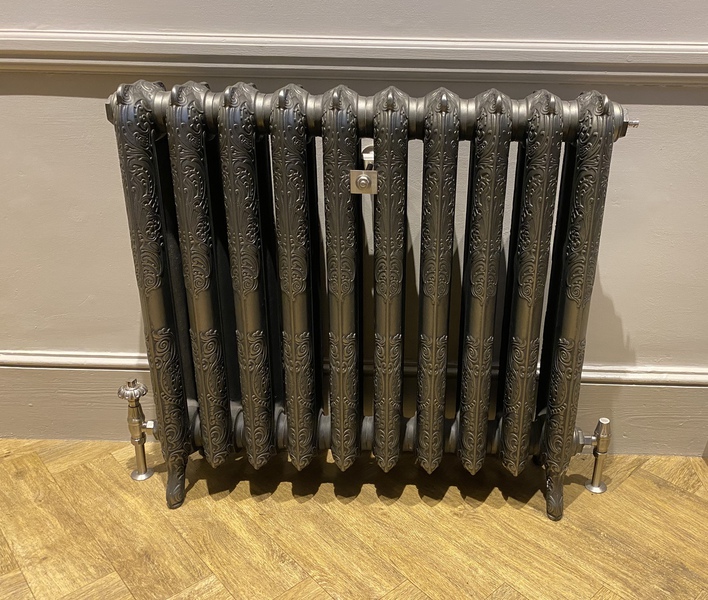

- Cast-iron radiators throughout the first floor

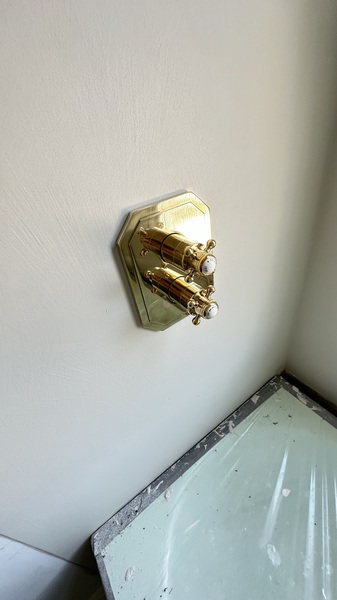

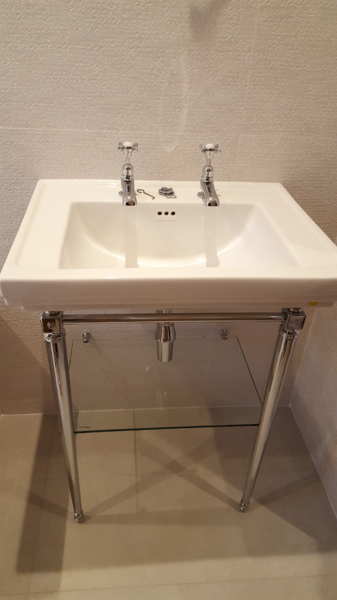

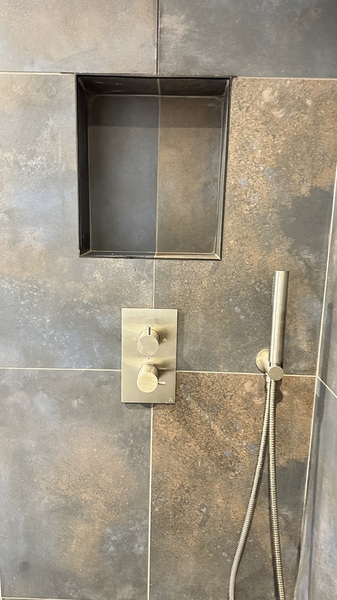

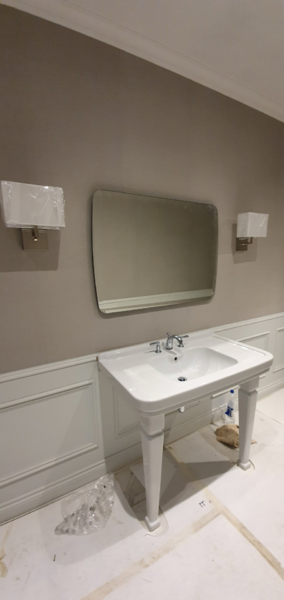

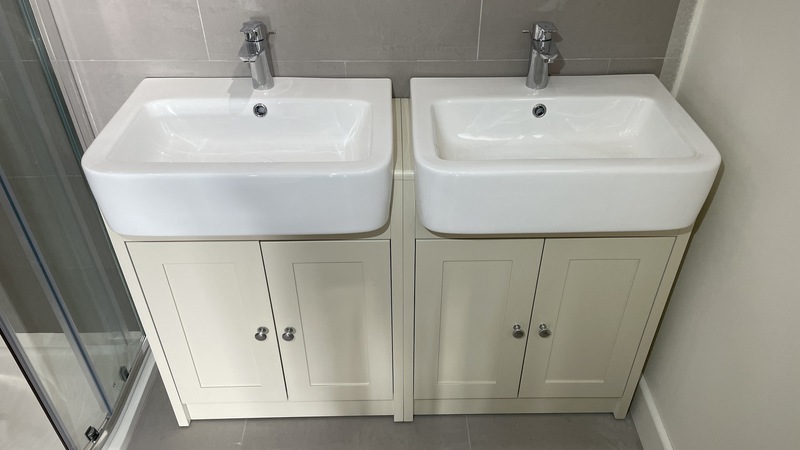

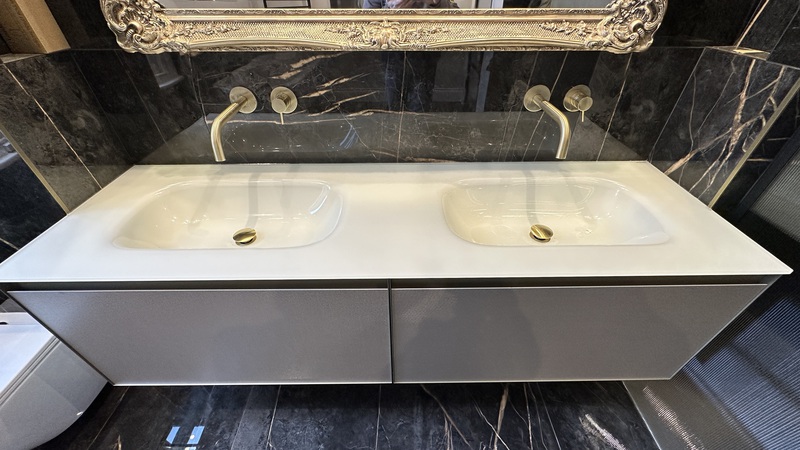

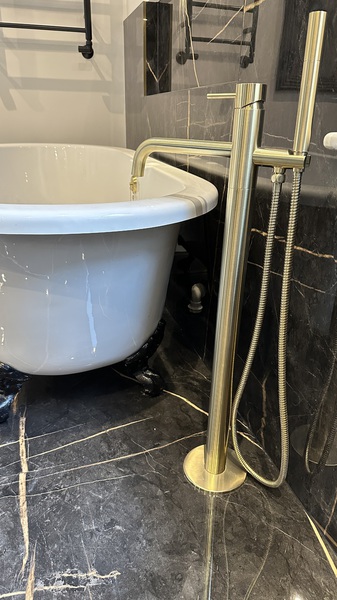

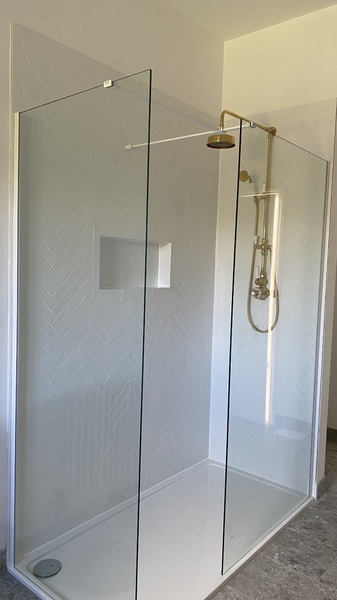

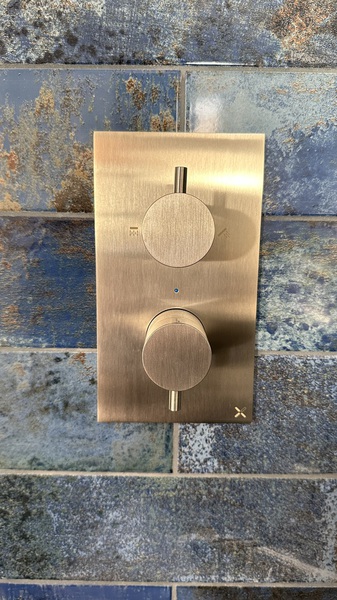

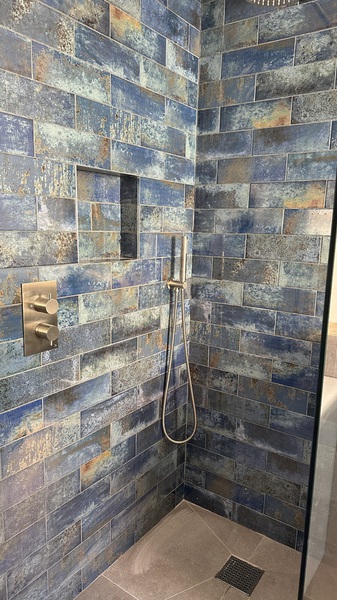

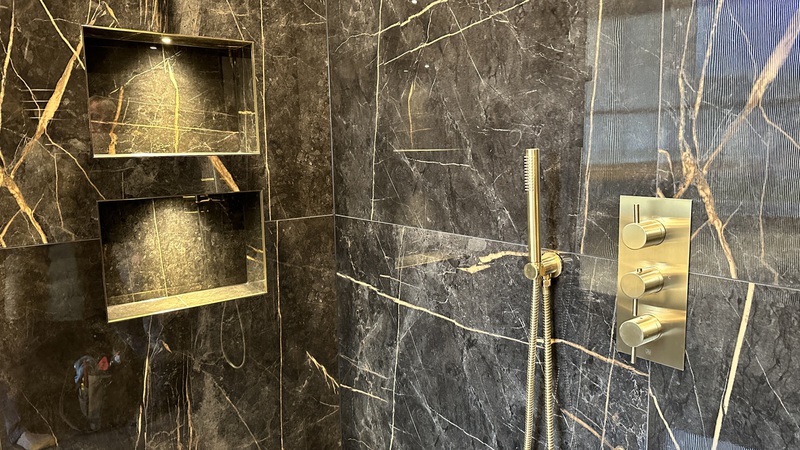

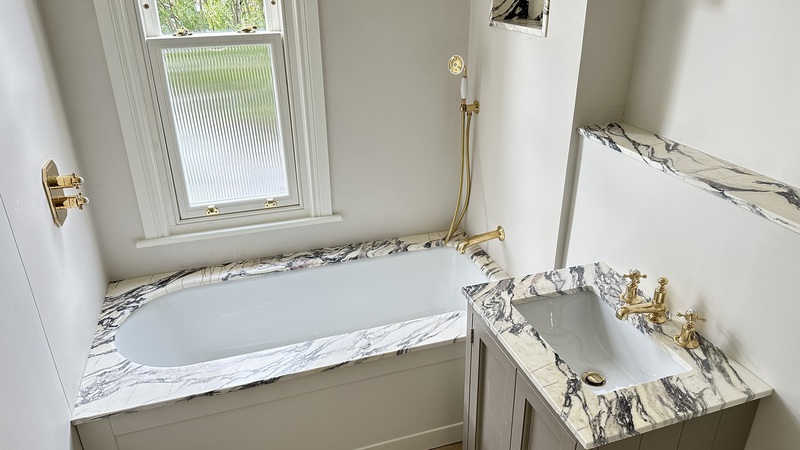

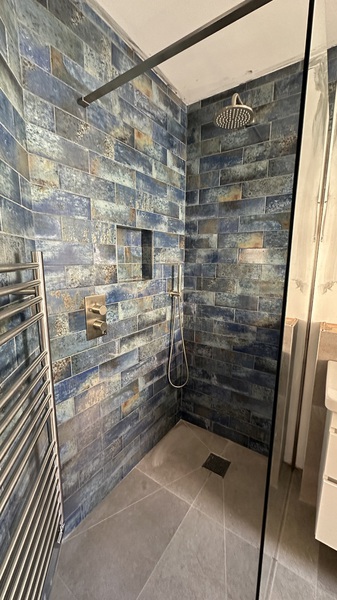

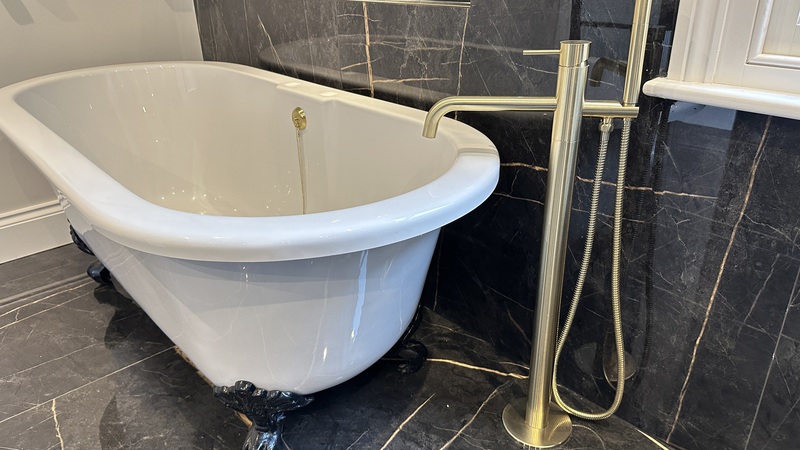

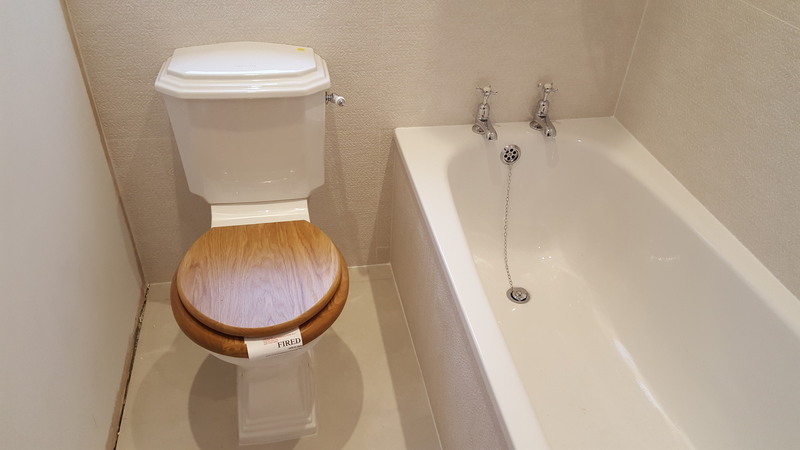

- Complete plumbing installation for four bathrooms

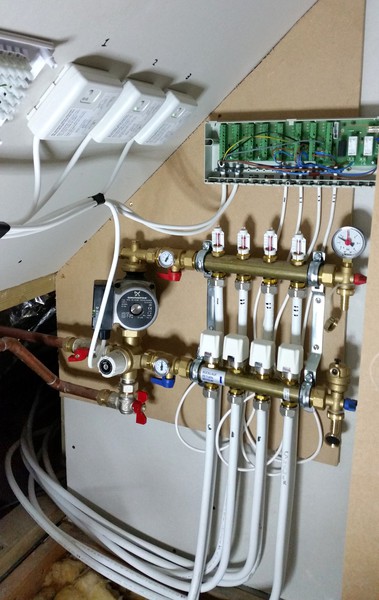

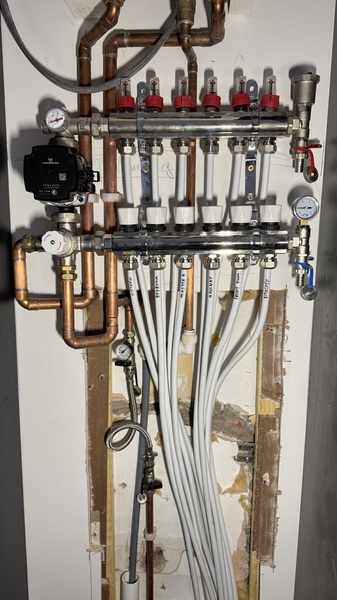

- Underfloor-heating manifold, circulation pumps and zone valves
- Heatmiser smart controls with mobile-app access
The Work:

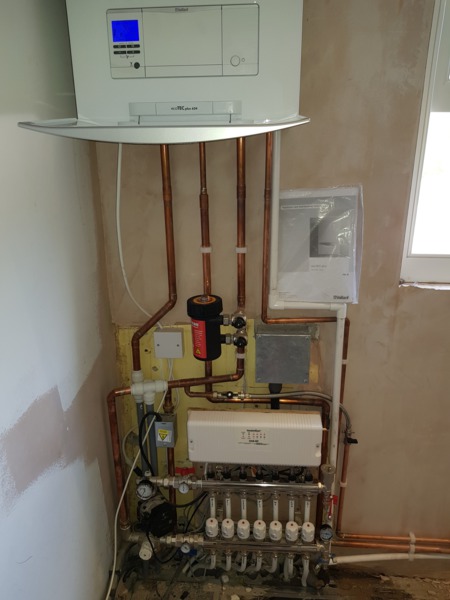

Our team carried out the complete heating, hot-water and plumbing installation throughout the house. This included installing the boiler and cylinder, distributing the heating and water services, and providing the plumbing required for four bathrooms.

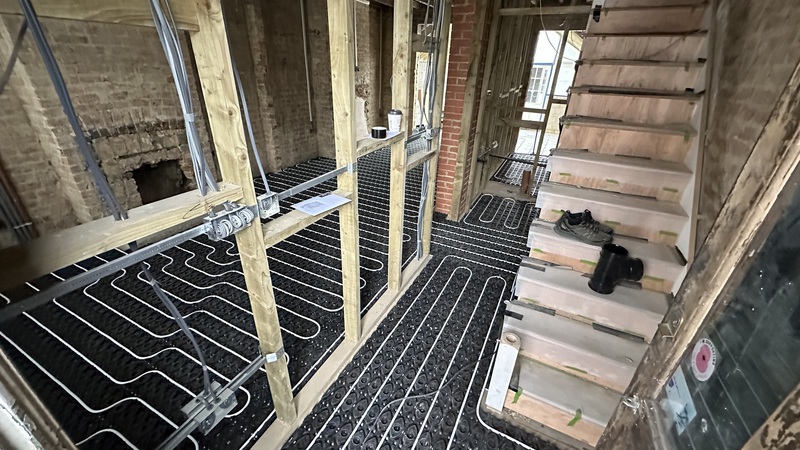

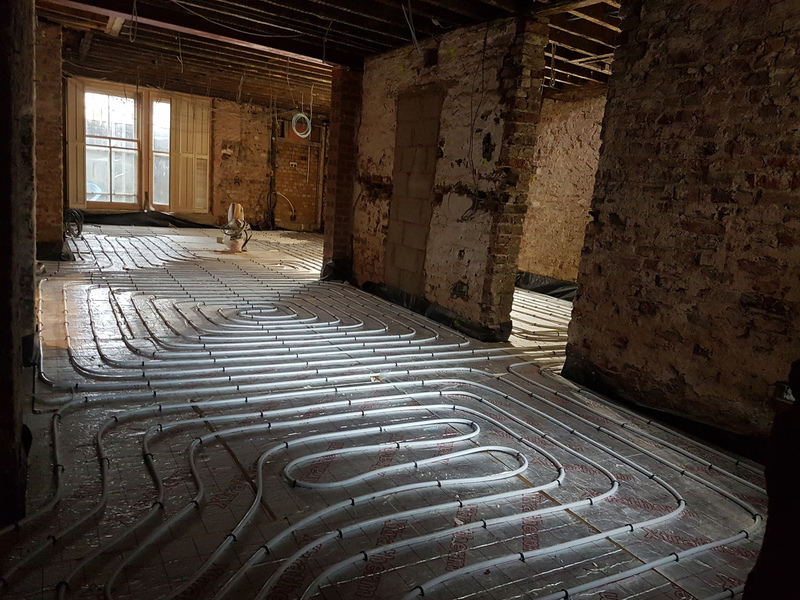

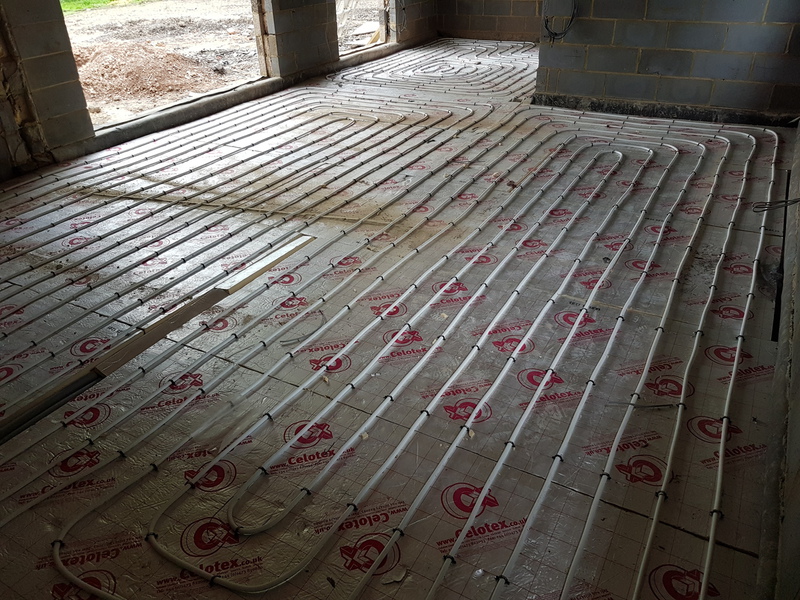

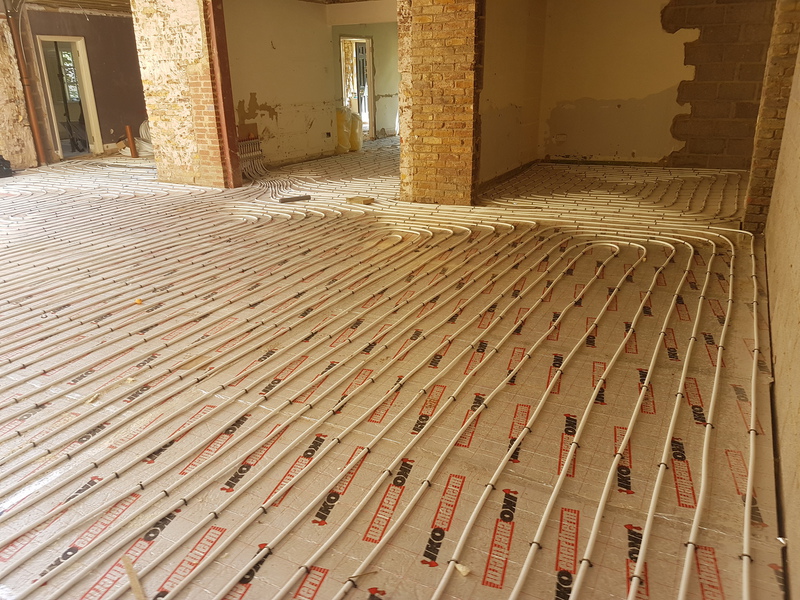

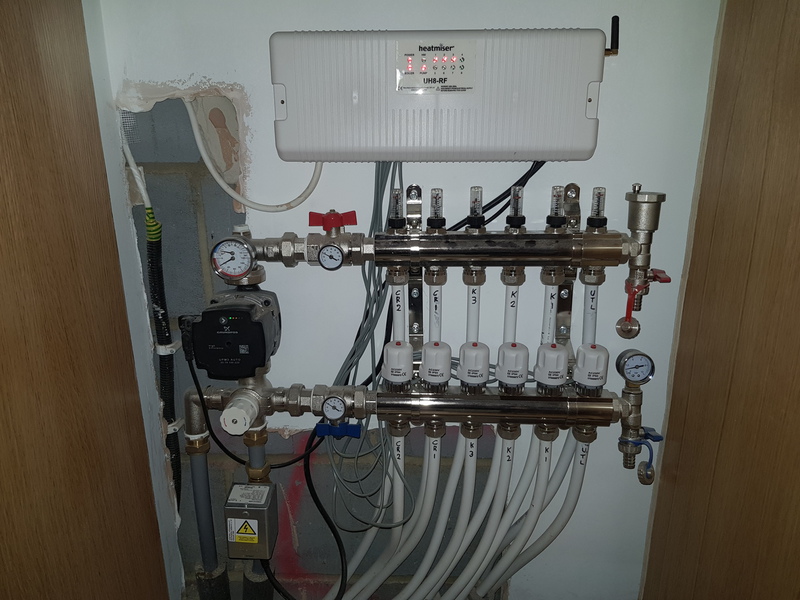

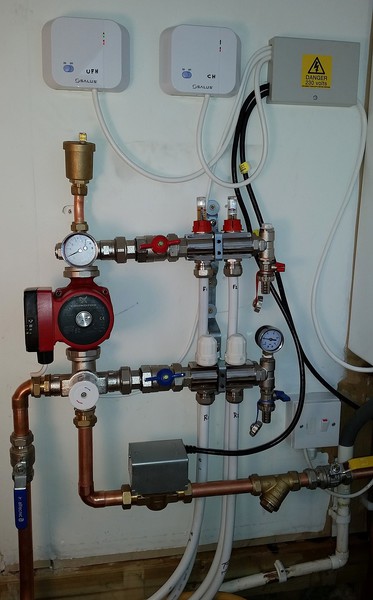

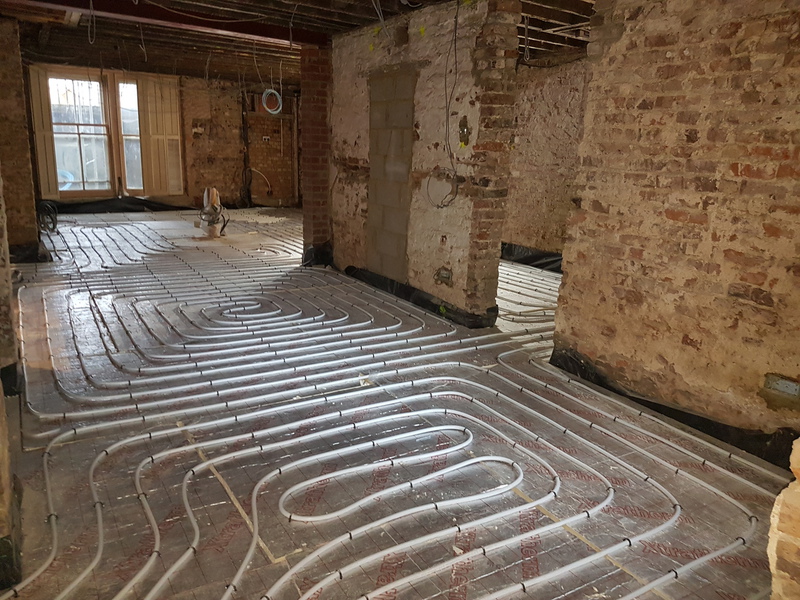

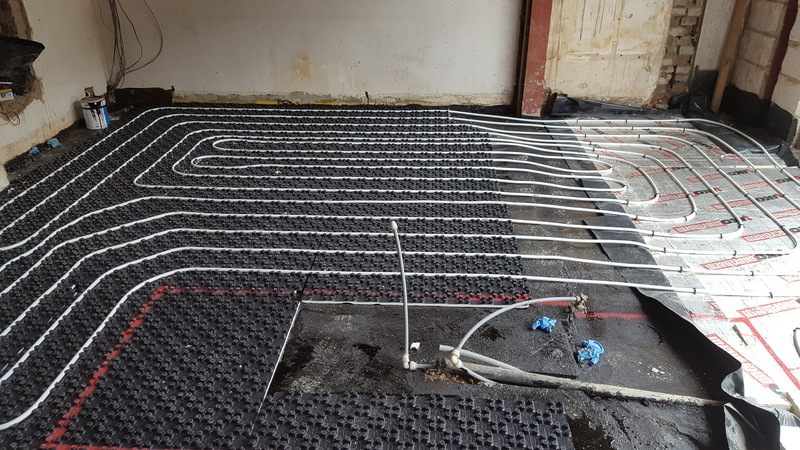

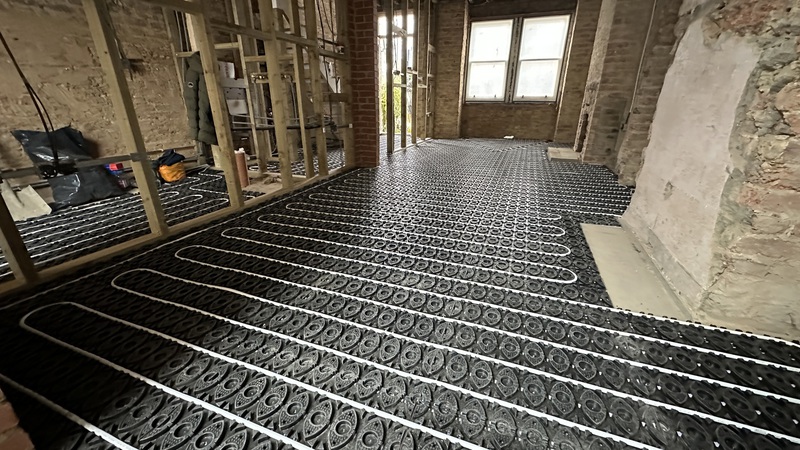

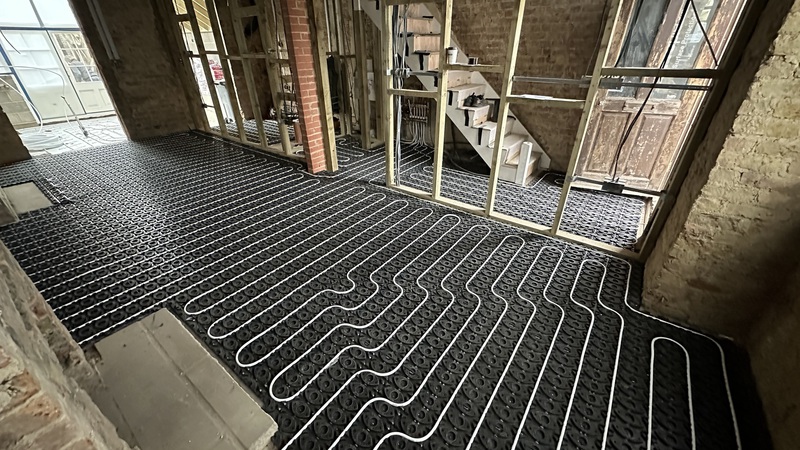

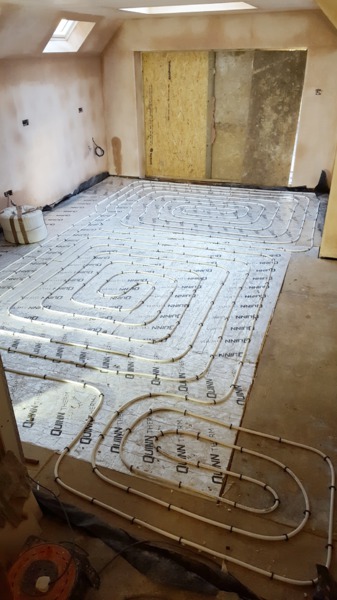

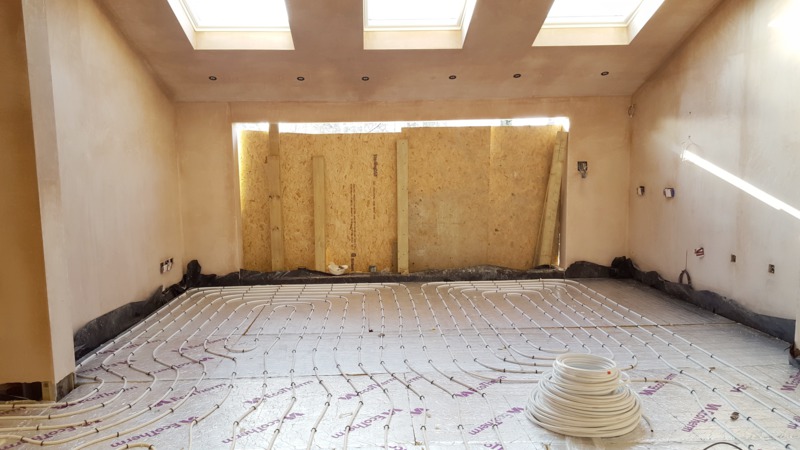

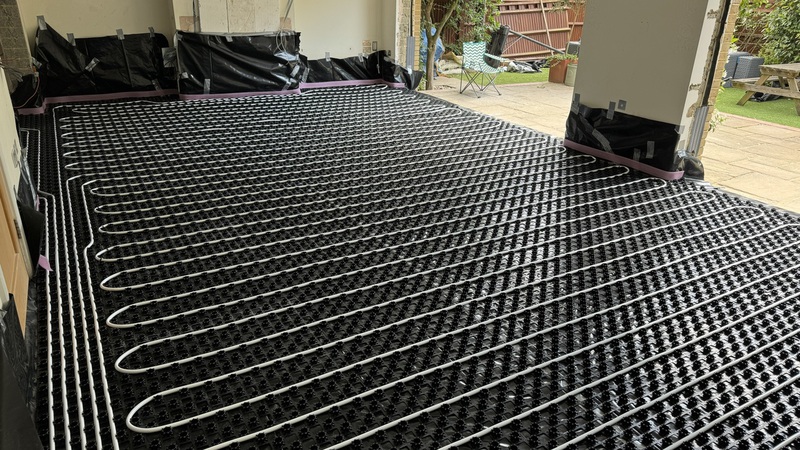

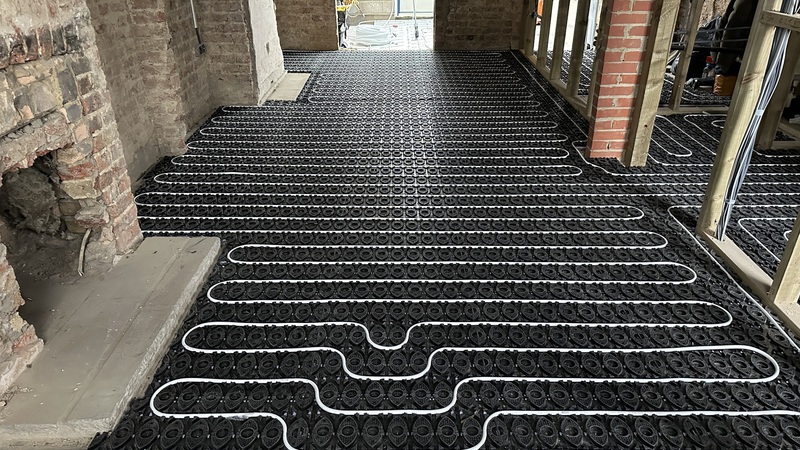

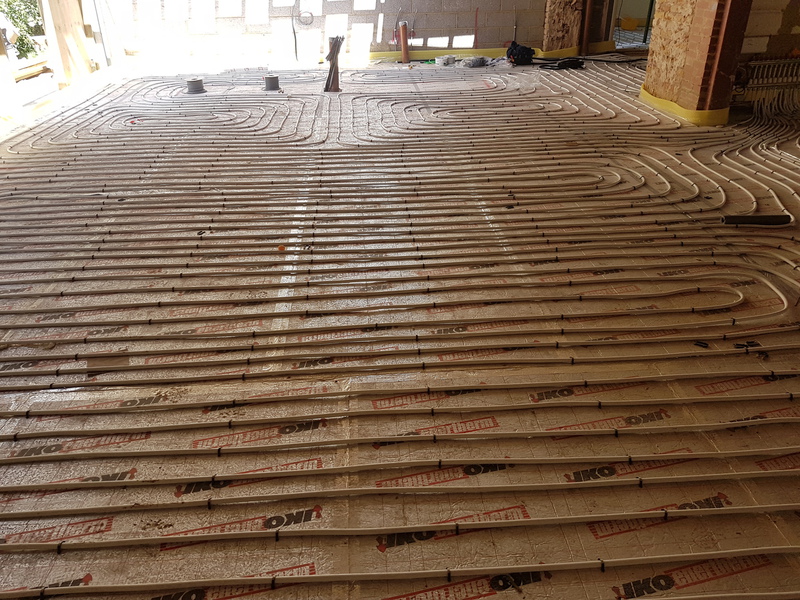

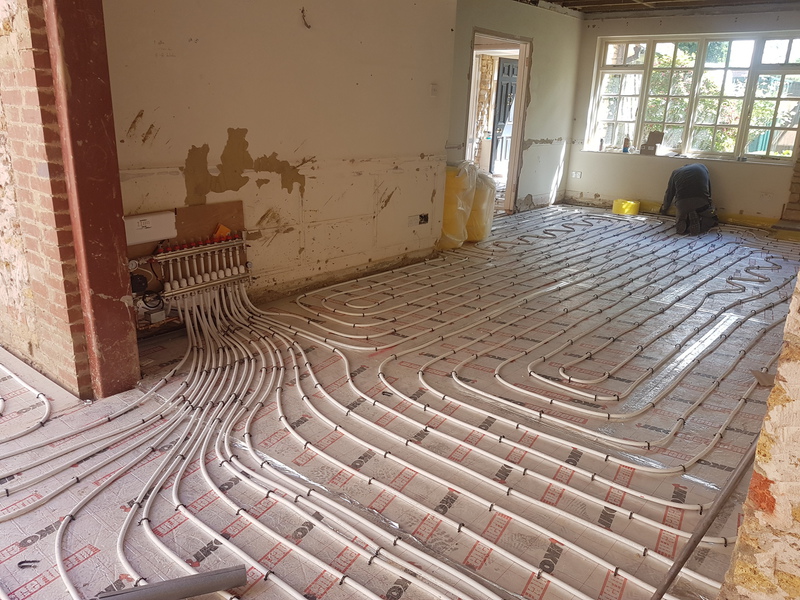

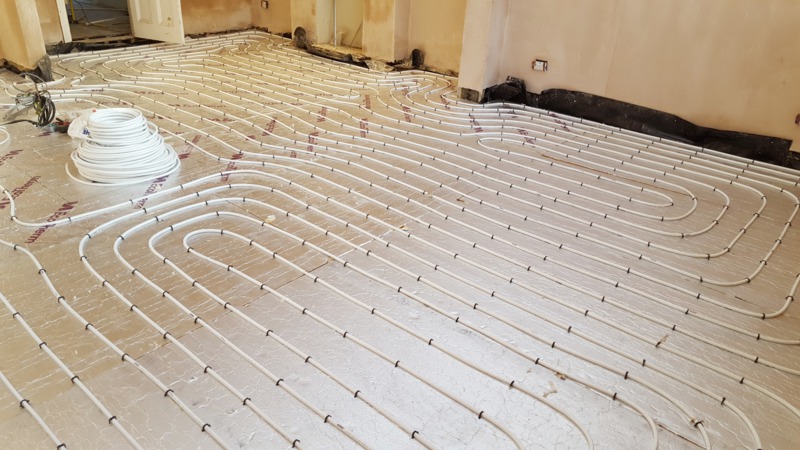

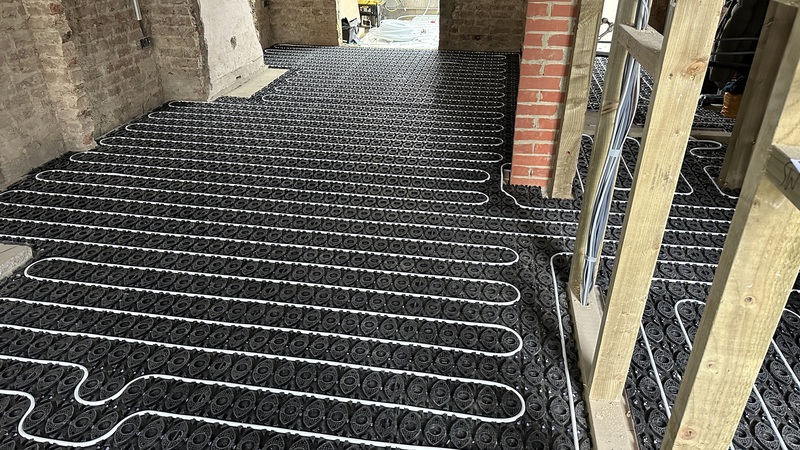

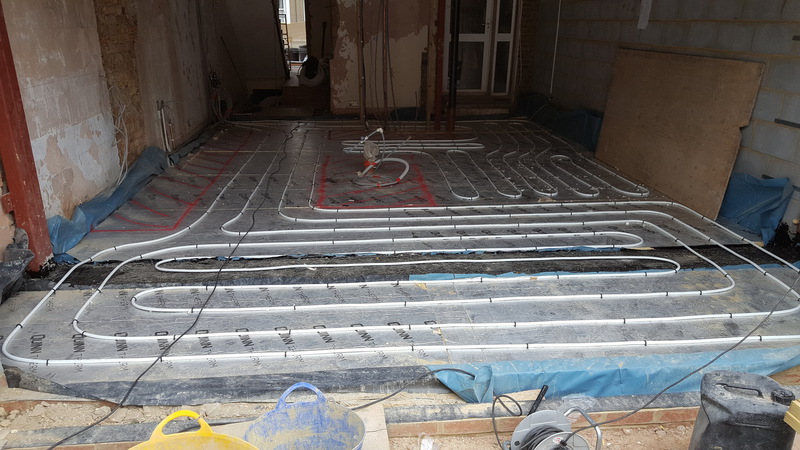

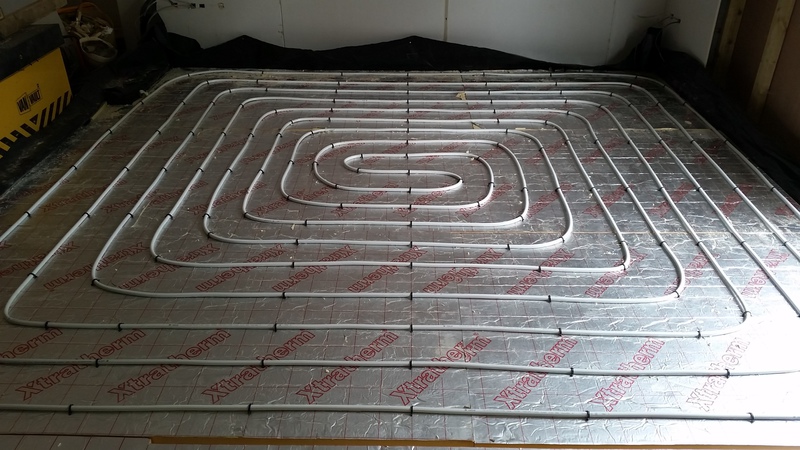

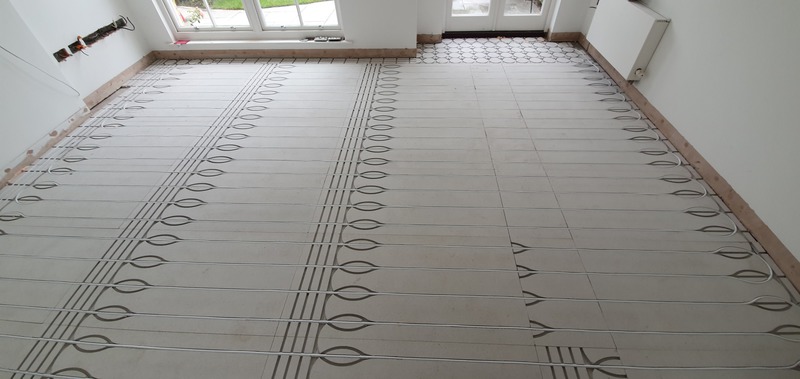

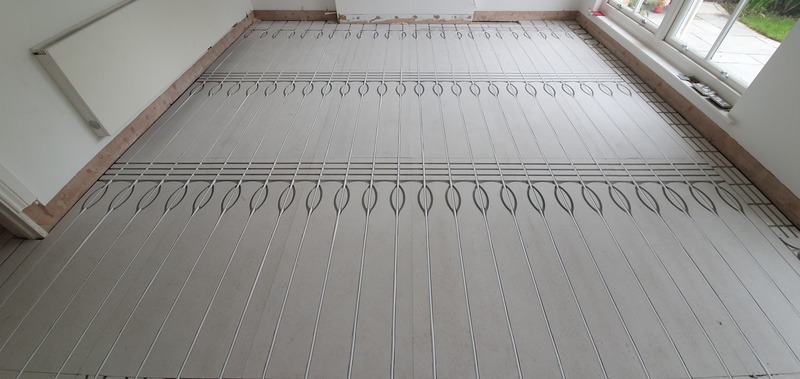

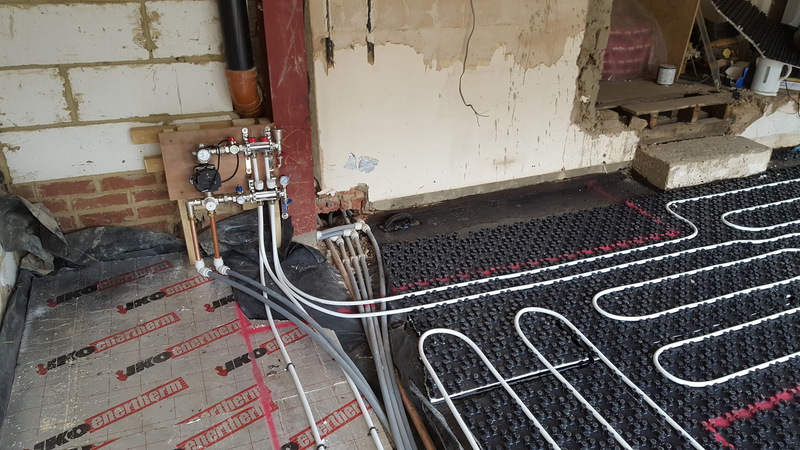

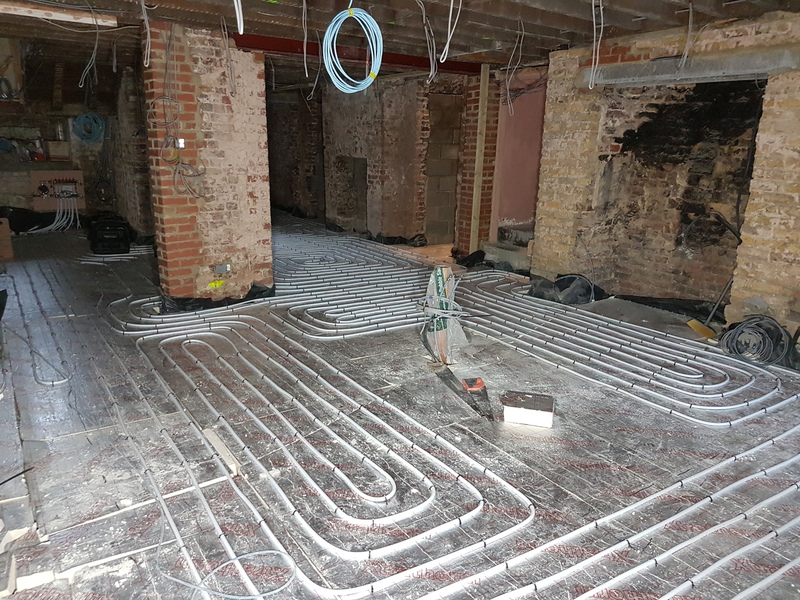

Approximately 160m² of underfloor heating was installed across the ground floor and divided into separate zones for comfortable and efficient temperature control. Traditional cast-iron radiators were fitted throughout the first floor to complement the character of the property.

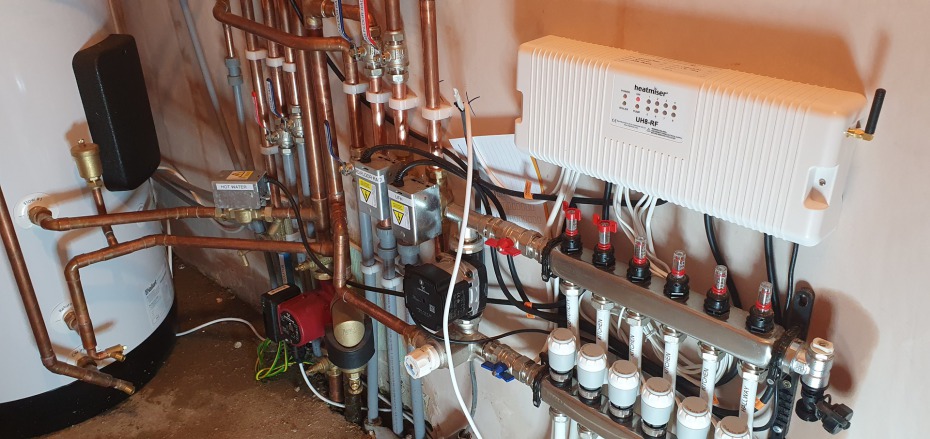

The underfloor heating, radiators and hot-water system were integrated with Heatmiser smart controls, allowing the homeowner to adjust temperatures and heating schedules remotely using the mobile app. The complete system was tested, balanced and commissioned upon completion.
The Result:
A fully integrated whole-house heating, hot-water and plumbing system serving four bathrooms. The completed installation combines comfortable ground-floor underfloor heating, traditional first-floor cast-iron radiators and convenient app-based control throughout the property.

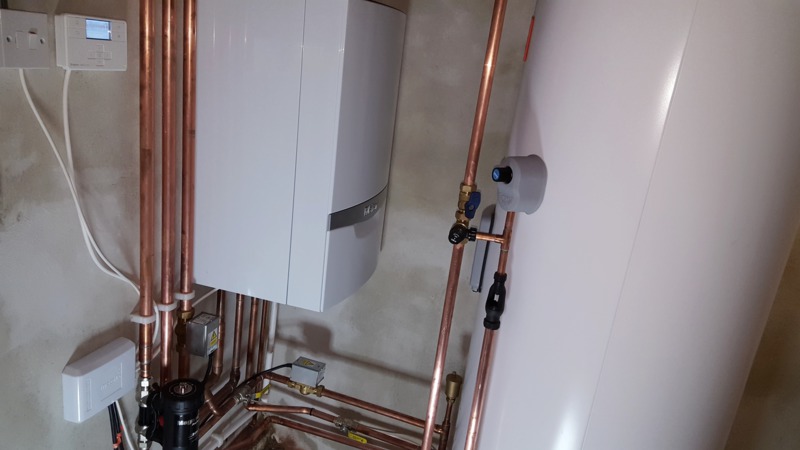

Vaillant Boiler and Cylinder Installation - Claygate, Surrey
Apolo Heating & Cooling installed a new high-output heating and hot-water system at a large residential property in Claygate, Surrey.
The installation combined a Vaillant 64kW boiler with a 300-litre Vaillant hot-water cylinder and Heatmiser controls, providing the capacity and control required for a property of this size.
The System:
- 1 × Vaillant 64kW boiler
- 1 × Vaillant 300-litre hot-water cylinder
- Heatmiser heating controls
- Associated pumps, zone valves and safety components
- Insulated heating and hot-water pipework
- Complete electrical and control connections
The Work:

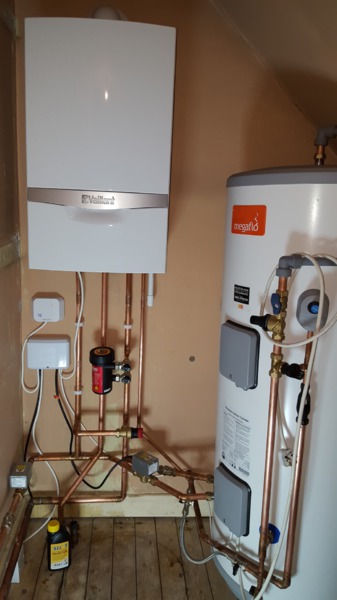

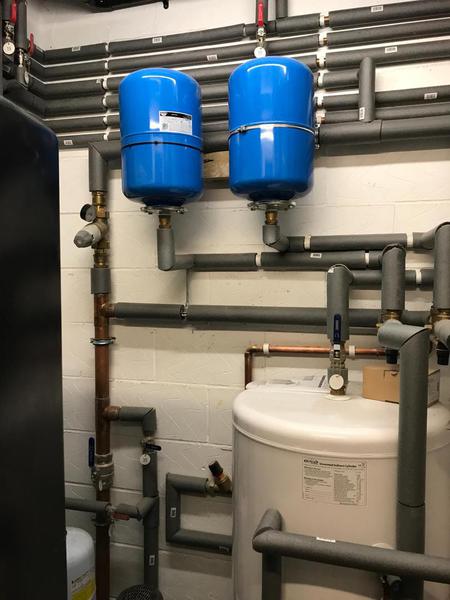

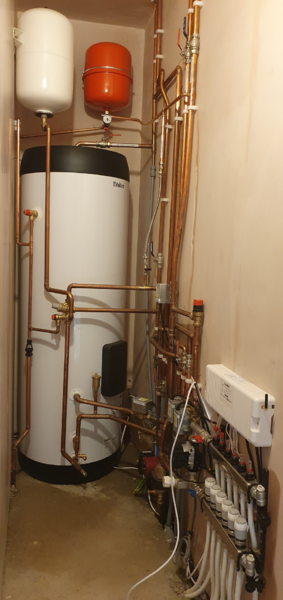

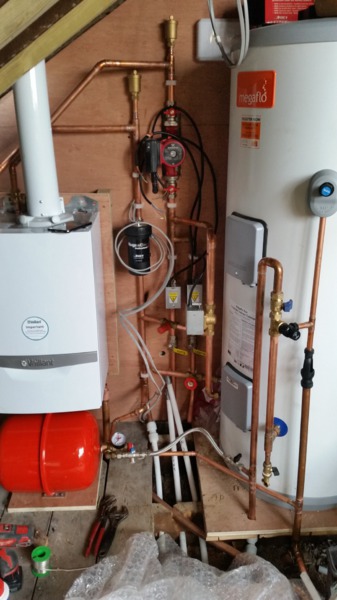

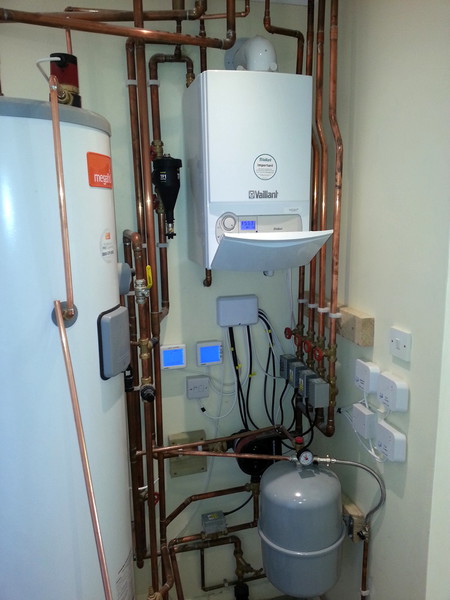

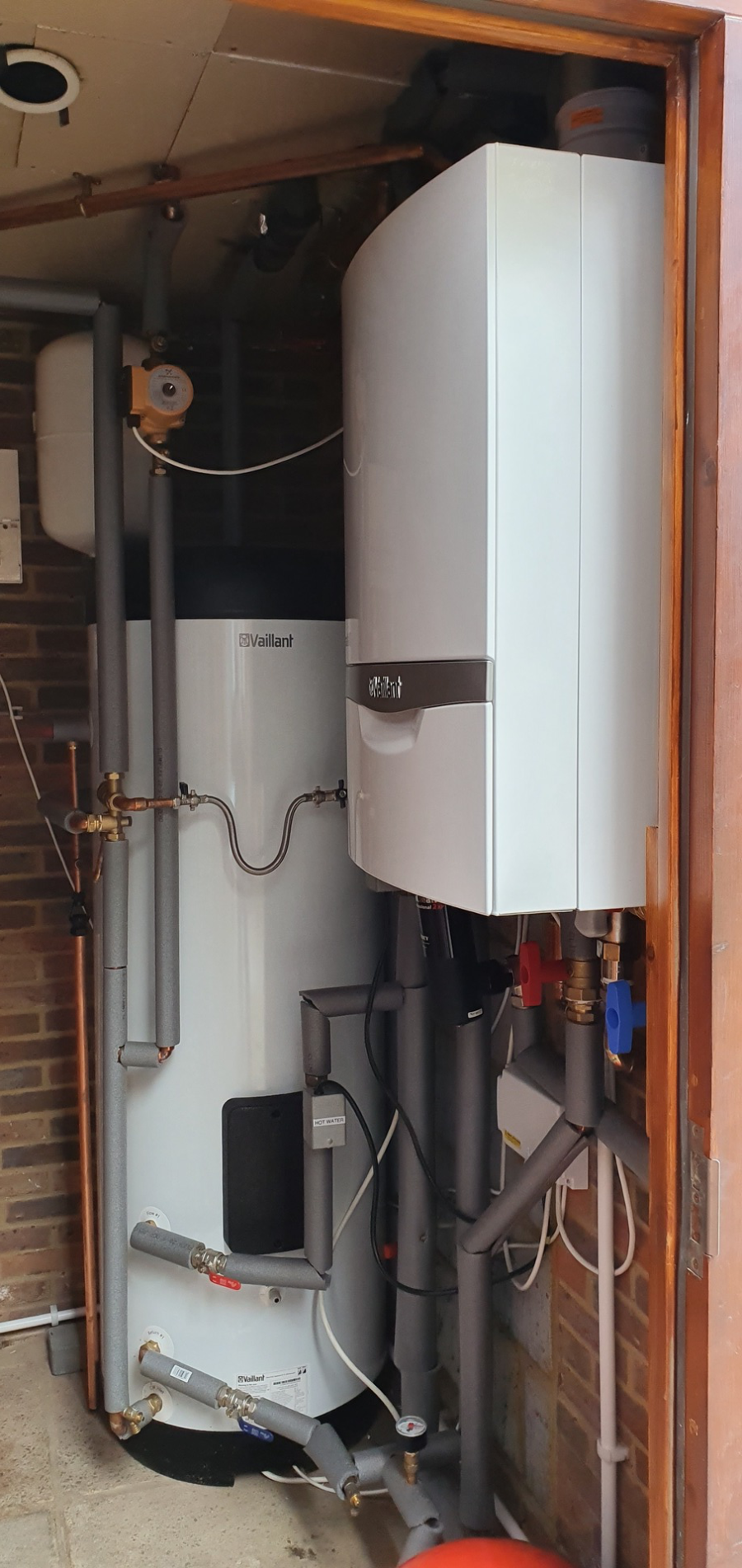

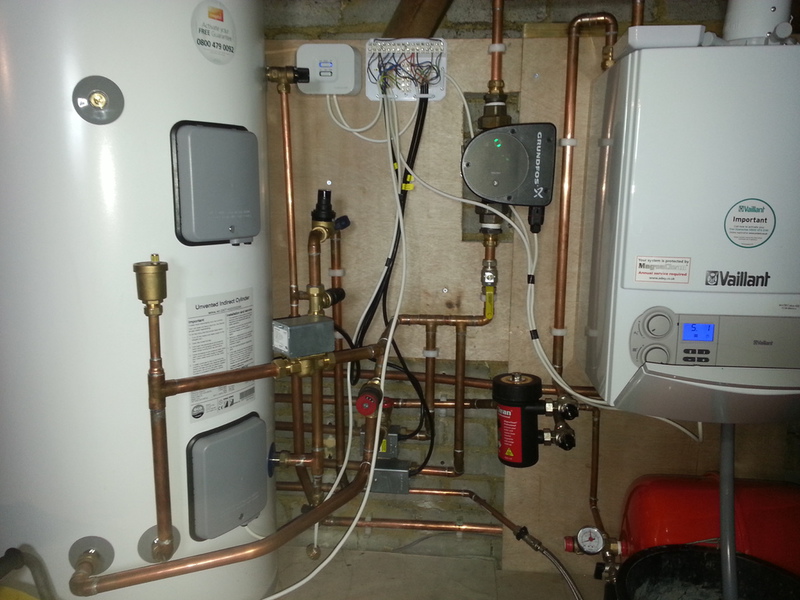

Our team installed the Vaillant boiler and 300-litre cylinder within the property’s dedicated plant area. The compact layout was carefully planned to accommodate the high-output boiler, large-capacity cylinder, pumps, valves, controls and associated pipework while retaining suitable access for future servicing and maintenance.
The heating and hot-water circuits were connected and insulated to minimise heat loss. Heatmiser controls were integrated into the installation to provide convenient management of the property’s heating and hot-water system.
Following completion, the entire installation was tested and commissioned to confirm safe, reliable and efficient operation.
The Result:
A fully commissioned, high-capacity heating and hot-water system designed to meet the demands of a large residential property.
The 64kW Vaillant boiler provides substantial heating output, while the 300-litre cylinder delivers a generous stored hot-water supply. Heatmiser controls provide straightforward and flexible management of the complete system.

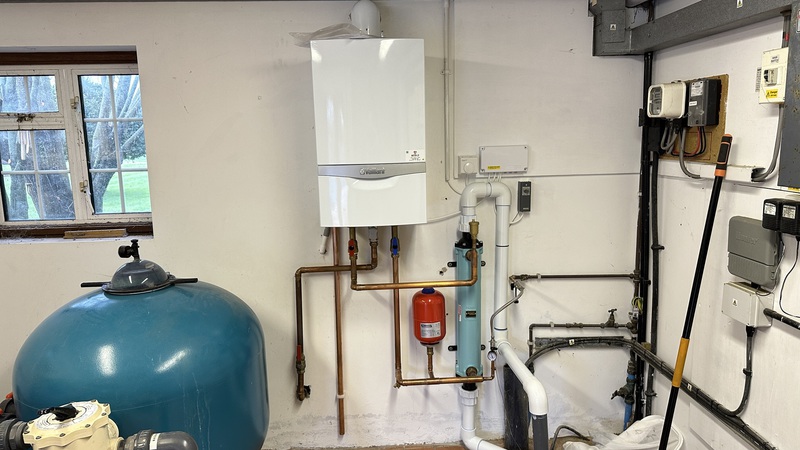

Commercial Boiler Installation — Babylon Lane, Tadworth

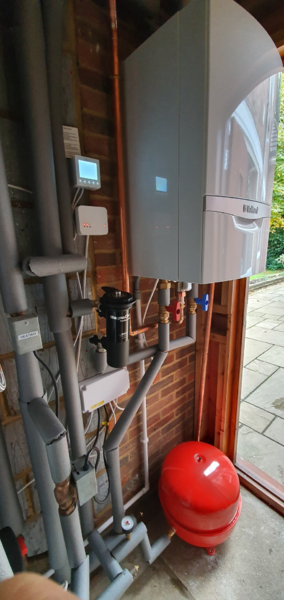

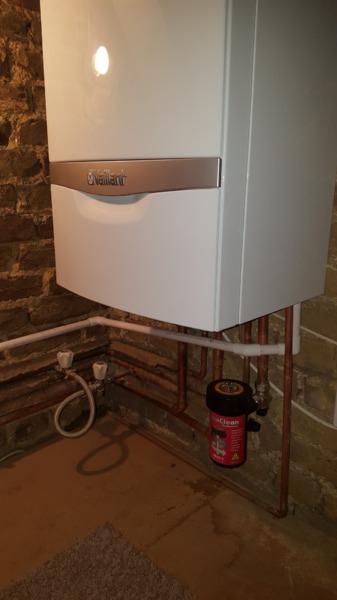

Apolo Heating & Cooling replaced an ageing boiler with a Vaillant ecoTEC 64kW commercial boiler at a large residential property on Babylon Lane in Tadworth, Surrey.
The new boiler was installed in a dedicated garage outbuilding, providing the capacity required to heat the main house while keeping the plant equipment separate from the living areas.
The System:

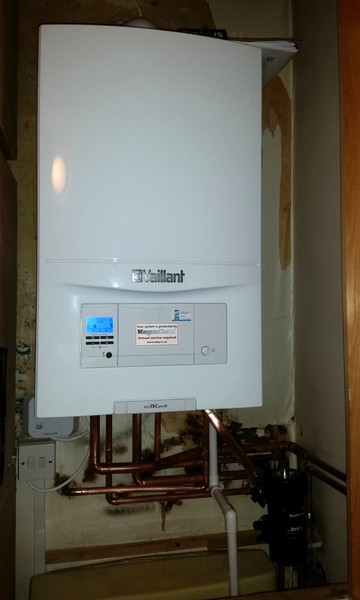

- 1 × Vaillant ecoTEC 64kW commercial boiler
- Associated heating pipework, valves and fittings
- Boiler controls and electrical connections
- Complete testing and commissioning
The Work:
Our team removed the ageing boiler and prepared the existing heating system for the new commercial installation.

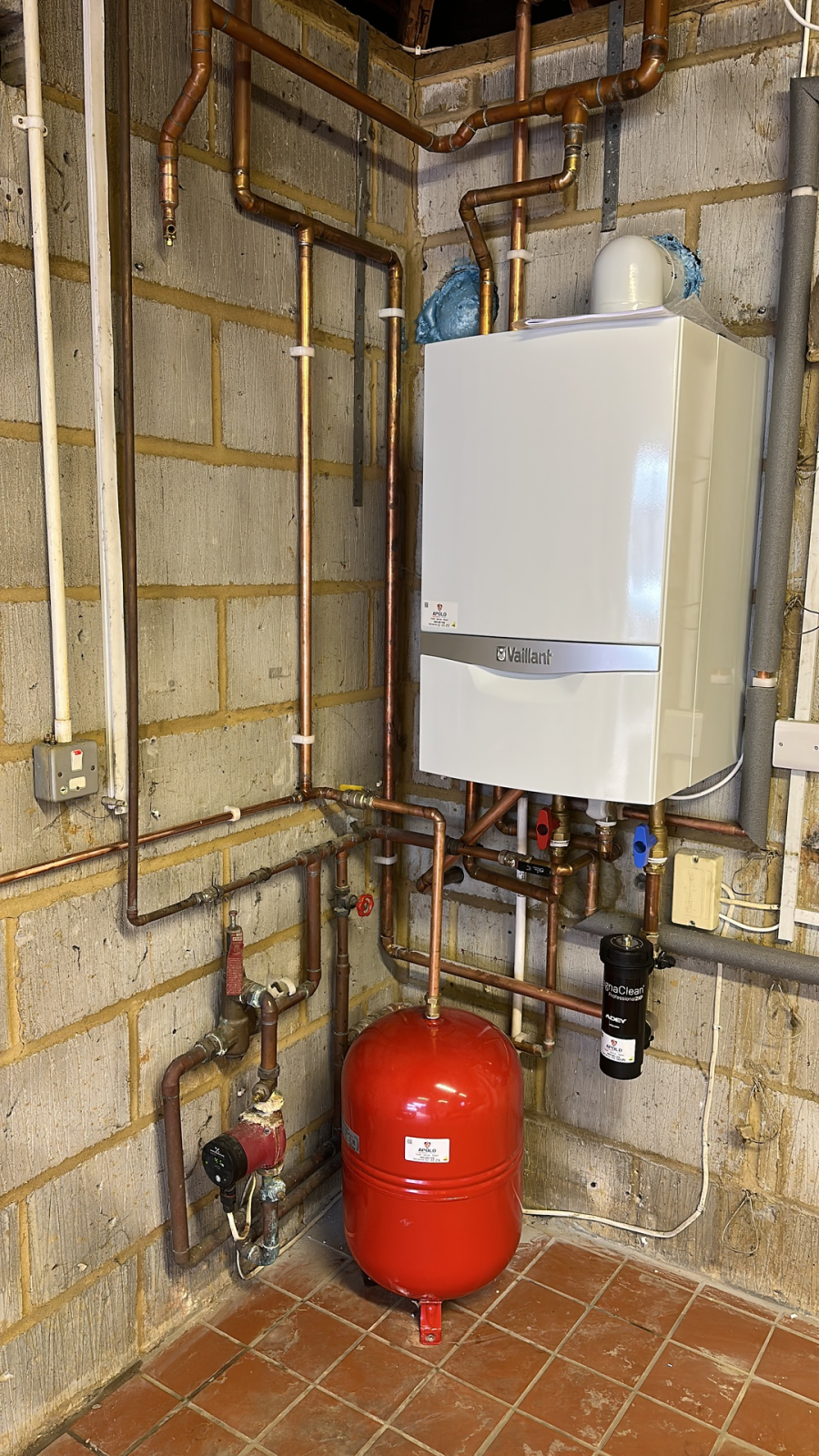

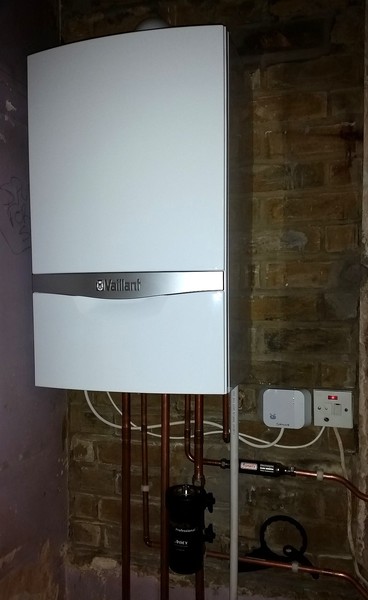

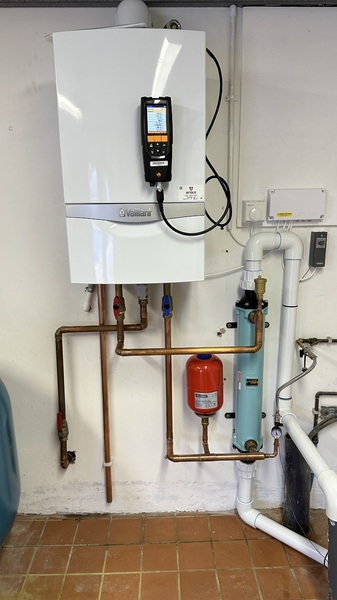

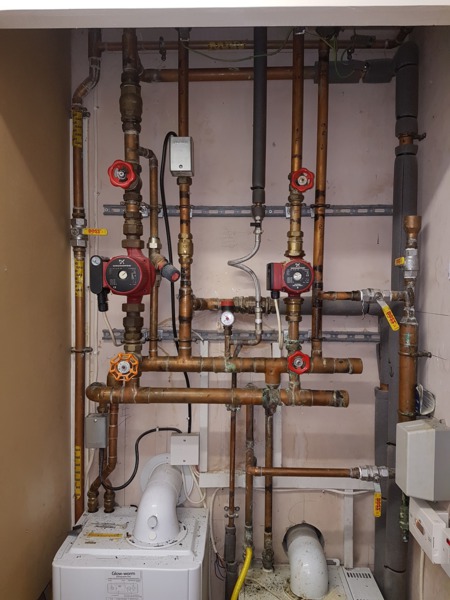

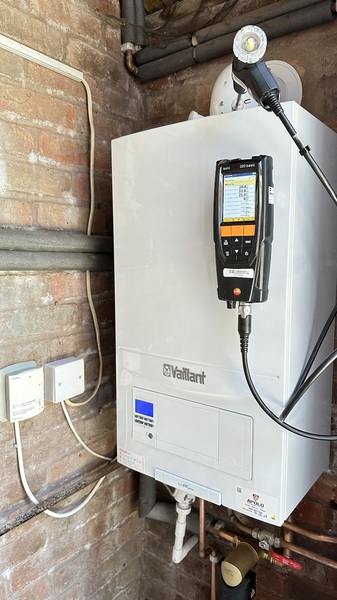

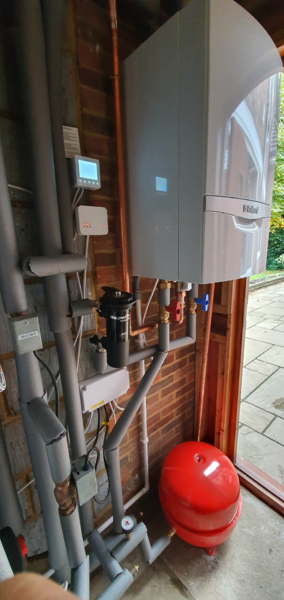

The Vaillant ecoTEC 64kW boiler was positioned in the garage outbuilding and connected to the heating services supplying the main property. The associated pipework and controls were adapted to integrate the new boiler with the existing system and meet the property’s substantial heating demand.
Locating the commercial boiler in a dedicated outbuilding kept the heating equipment away from the main living accommodation while providing a practical, accessible location for future servicing and maintenance.
Following installation, the complete system was tested and commissioned to confirm safe, reliable and efficient operation.
The Result:
A fully commissioned, high-output heating system capable of meeting the demands of this large residential property.
The new commercial boiler provides dependable heating for the main house while remaining discreetly located in the garage outbuilding, keeping the plant equipment separate from the property’s living spaces.
